| 序號NO |
項目 Items |
單位 Unit |
參數/Parameters | 備注/Remark | |
| 1 | 電池類型/ Battery Type | / |
磷酸鐵鋰電池 LiFePO4 |
/ | |
| 2 | 標稱容量/Nominal Capacity | Ah | 20 |
按照標準充/放電 By standard charge and discharge |
|
| 3 | 標稱電壓/Nominal Voltage | V | 3.2 | / | |
| 4 | 充電方式/Charging Mode | / | CC/CV | / | |
| 5 | 充電截止電壓/End of Charge Volta | V | 3.7 | / | |
| 6 | 放電截止電壓/End of Discharge Voltage | V | 2.5 | / | |
| 7 | 標準充電電流/Standard Charge Current | A | 1C(20A) | CC | |
| 8 | 標準放電電流/Standard Discharge Current | A | 1C(20A) | CC | |
| 9 |
最大持續放電電流 Max. Continuous Discharge Current |
A | 10C(200A) | CC | |
| 10 |
最大峰值放電電流 Max. Peak Discharge Current |
A | 15C(300A) | CC/30S | |
| 11 | 單個電芯重量/Weight of Single Cell | g | 600±100 | / | |
| 12 | 最大放電功率/Battery power density | W/Kg | >1000 | 1C/25℃ | |
| 13 | 內阻/Resistance | mΩ | < 0.8 | / | |
| 14 | 尺寸/Dimension | mm | 36-1+1×130-1+1×65-1+1 | / | |
| 15 | 工作溫度 | 充電/Charge | ℃ | 0～45 | / |
| Working Temperature | 放電/Discharge | ℃ | -43～+55 |
-43℃冷凍24h,1C放電效率>90% -43℃ freezing for 24 hours,1C discharge , Not less than 90% of rated capacity |
|
| 16 |
貯存溫度 Storage Temperature |
1個月/1 Month | ℃ | 0～60 |
貯存時應充電至定容量的40%~50% Storage capacity should be 40%~50% of rated capacity |
| 3個月/3 Months | ℃ | 0～45 | |||
| 6 個月/6 Months | ℃ | 0～25 | |||
| 大氣壓力/Air Pressure | kPa | 86～106 |
|
||
| 相對濕度/Relative Humidity | RH | 15%～90% |
|
||
| 17 | 循環壽命/Cell Cycle Life (Times) | / | >2000 |
25℃，1C充放電，不低于額定容量的80%（16Ah） 1C charge-discharge at 25℃, Not less than 80% of rated capacity（40Ah） |
|
| 18 | 月自放電率/Self-Discharge Rate per Month | % | <3 | 室溫 | |

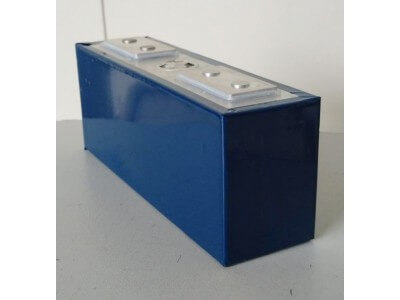

威能磷酸鐵鋰電池IFP3613065-20Ah
